Technical Data
|
|
Order Code
|
MC010
|
|

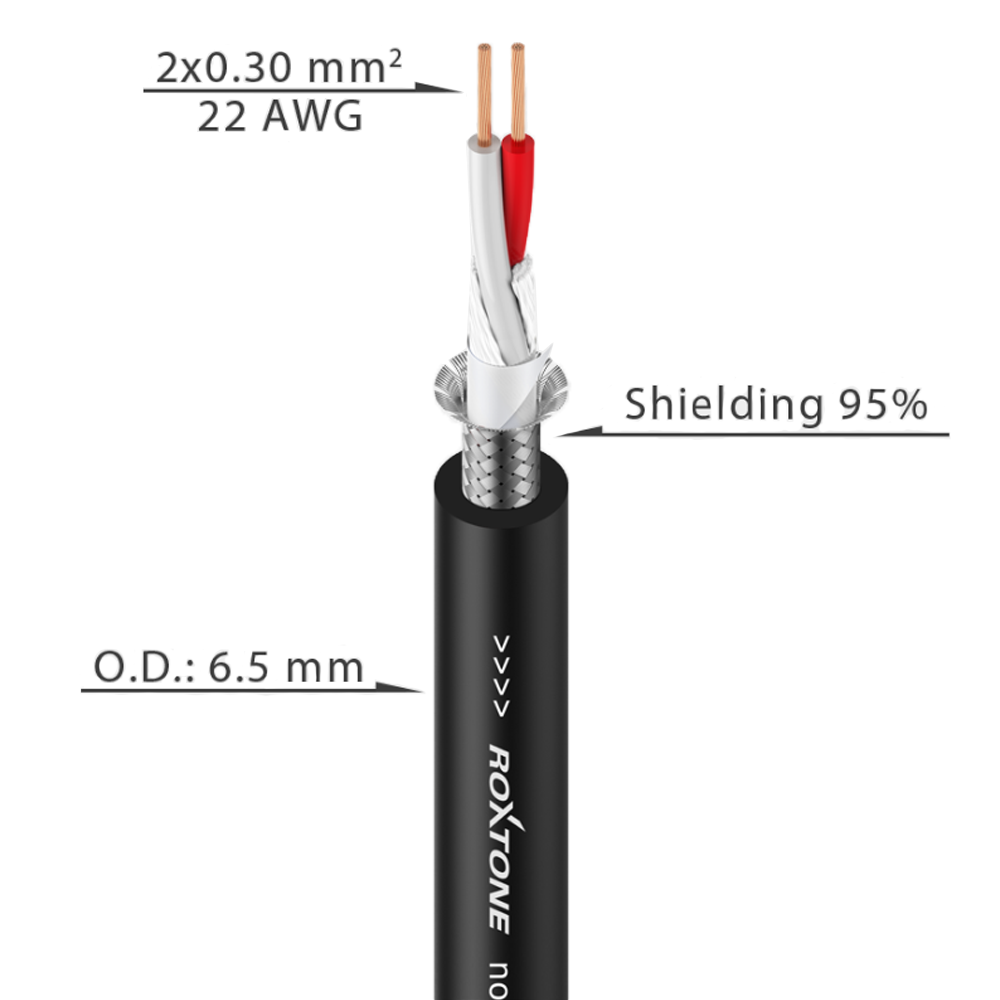

Jacket, diameter
|
PVC 6.5 mm
|
|
AWG
|
22
|
|
No. of inner conductors
|
2 x 0.30 mm²
|
|
Copper strand per conductor
|
38 x 0.10 mm
|
|
Conductor insulation
|
PE 1.50 mm
|
|
Shielding
|
tin plated copper braided
shielding
with 128 x 0.10 mm
|
|
Shielding factor
|
95%
|
|
Temperature range
|
min. -20°C
|
|
Temperature range
|
max. +70°C
|
|
Packaging
|
100/300 m roll
|
Electrical Data
|
|
Capac. cond./cond. per 1 m
|
56 pF
|
|
Capac. cond./shield. per 1 m
|
122 pF
|
|
Cond. resistance per 1 m
|
56 mΩ
|
|
Shield. resistance per 1 m
|
23.5 mΩ
|
Features
-
High transmission quality through the use of OFC stranding with a large wire diameter of 2 x 0.30 mm²
-
Very low capacity due to the PE insulation
-
Good protection due to the dense copper braided shielding
-
High flexibility makes it easy to wind
Applications
-
Stage
-
Mobile
-
Studio
-
Installations
