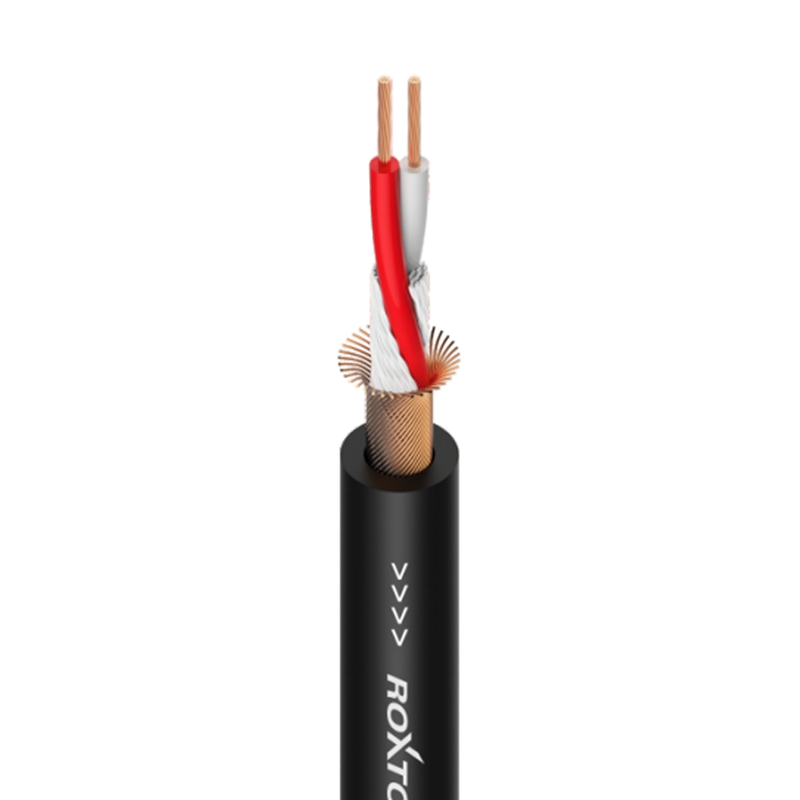

Technical Data
|
|
Jacket, diameter
|
PVC 6.5 mm
|
|
AWG
|
22
|
|
No. of inner conductors
|
2 x 0.34 mm²
|
|
Copper strand per conductor
|
19 x 0.15 mm
|
|
Conductor insulation
|
PE 1.5 mm
|
|
Shielding
|
copper spiral shielding
with 80 x 0.10mm
|
|
Shielding factor
|
95 %
|
|
Temperature range
|
min. -20 °C
|
|
Temperature range
|
max. +70 °C
|
|
Packaging
|
100/300 m roll
|
Electrical Data
|
|
Capac. cond./cond. per 1 m
|
58 pF
|
|
Capac. cond./shield. per 1 m
|
115 pF
|
|
Cond. resistance per 1 km
|
53 mΩ
|
|
Shield. resistance per 1 km
|
25 mΩ
|
|
Insulation resist. per 1 km
|
> 1 G Ω
|
|
Surge impedance
|
approx. 100 Ω
|
Features
-
The use of OFC strands and a large conductor cross-section of 2x0.34 mm² ensure high-quality signaltransmission
-
Very low capacitance due to thick PE insulation
-
Good shielding provided by dense copper spiral shielding
-
Highly flexible, well-suited for use with cable drums
Applications
-
Stage
-
Studio
-
Installations
