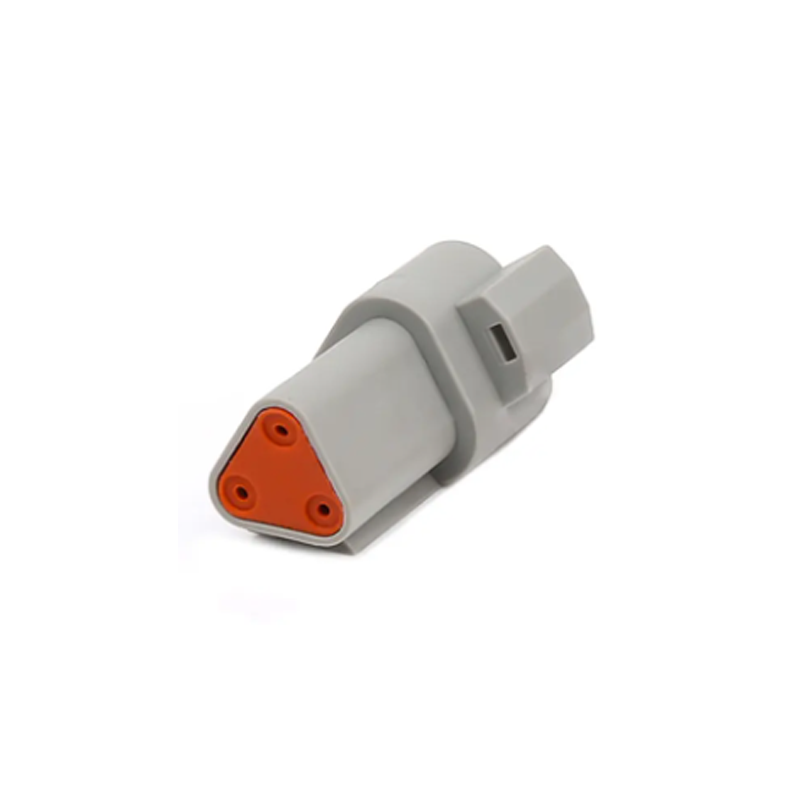

Home > Connector > DEUTSCH 3 Pin DT04-3P Automotive Connector DT 3 Way Receptacle SZ 16 3pin Female Housing
  • DEUTSCH 3 Pin DT04-3P Automotive Connector DT 3 Way Receptacle SZ 16 3pin Female Housing
1/1
  • DEUTSCH 3 Pin DT04-3P Automotive Connector DT 3 Way Receptacle SZ 16 3pin Female Housing

DEUTSCH 3 Pin DT04-3P Automotive Connector DT 3 Way Receptacle SZ 16 3pin Female Housing

10.01 mm
21.13 mm

24.71 mm

43.13 mm

0.0 (0 Reviews)
0 Sold
$0.91 $0.76
Received successfully
Coupon Code
CONTINUE SHOPPING
Wholesale:
$0.76
850-2549
$0.74
2550-5099
$0.71
5100-100000
    Please select the information you wantX
Quantity:
-
+
850 * $0.76 = $646
save $0.00
  • DEUTSCH 3 Pin DT04-3P Automotive Connector DT 3 Way Receptacle SZ 16 3pin Female Housing
  • DEUTSCH 3 Pin DT04-3P Automotive Connector DT 3 Way Receptacle SZ 16 3pin Female Housing
1/1
  • DEUTSCH 3 Pin DT04-3P Automotive Connector DT 3 Way Receptacle SZ 16 3pin Female Housing
  • Description

TE Connectivity

Connectors

3 Position

10.01 mm

Receptacle (Female)

Cable Mount / Free Hanging

Crimp

20 AWG

14 AWG

Gray

DT

DT

Bulk

Application:

Wire to Wire

Attachment Hole Diameter:

1.5 mm

Brand:

TE Connectivity / DEUTSCH

Contact Gender:

Pin (Male)

Current Rating:

13 A

Dimensions:

21.13 mm x 24.71 mm x 43.13 mm

Height:

24.71 mm

Housing Gender:

Receptacle (Female)

Housing Material:

Polyamide (PA)

Ingress Protection:

IP68, IP6K9K

Insulation:

Insulated

Length:

43.13 mm

Locking Mechanism:

Integrated in Housing

Material:

Plastic

Mating Gender:

Plug

Mating Part Number:

DT06-3S

Maximum Operating Temperature:

+ 125 C

Minimum Operating Temperature:

- 55 C

Mounting Angle:

Straight

Type:

3-Way

Voltage Rating:

250 V

FAQ

Q1: Why choose us?
A1: We are a leading professional wire harness manufacturer with over 15 years of experience,has engineering R & D personnel with over 10 years of experience that can provide professional suggestions for customers' product design. We can produce high quality products in time and good after-sales service and reasonable price for you.

Q2: What is the Minimum Order Quantity (MOQ) ?
A2 : Normally, MOQ is 100pcs, We can also discuss special quantity requirements.

Q3: How much do I need to pay for your OEM service ?
A3: No need to pay extra cost for our OEM service if order quantity over 1000pcs.

Q4: What is the delivery time ?
A4: 1-7 days for sample orders ,15-30 days for mass production orders, according to different quantities, OEM, etc.

Q5: How long do I need to wait before my goods arrive ?
A5: 5-7 days for air transportation, 3-5 days for international express,20-30 days for shipping.

Q6: How is your product quality ?
A6: Our raw materials are purchased from qualified suppliers that it is UL, ROHS etc. Compliant. We have a strong quality control team to guarantee our quality according to ISO9001 standard.

Q7: How long is your warranty ?
A7: Our warranty is 12 months after delivery, We will solve any problem of the product in time.v
